NEC D8085A

Complete NEC D8085 card


Complete NEC D8085 card

Complete NEC D8085 card

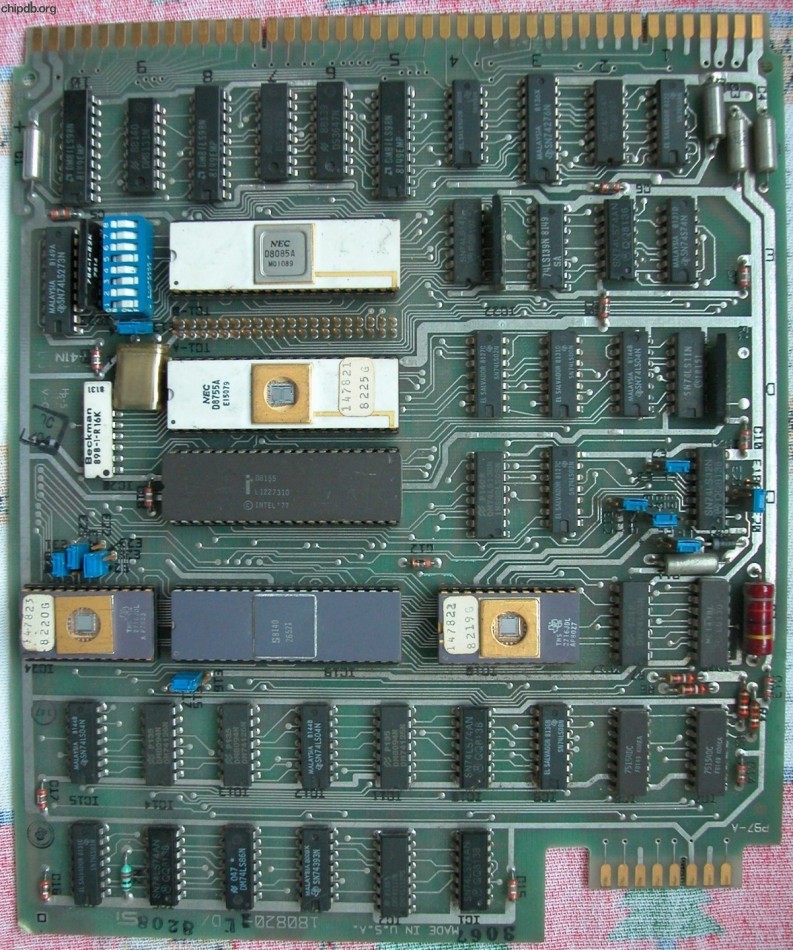

Notes:Complete processor card with NEC D8085A CPU, NEC D8755A (16384 bit EPROM with I/O), Intel D8155 (2048 bit static MOS RAM with I/O port & timer), Signetics 2652I (MPCC, MultiProtocol Communication Controller) and two 16 Kbit Texas Instruments EPROMs (TMS 2716JDL). The board dates back to 1981/1982.
Keywords:
Date: 22.06.2008 12:21
Photo contributed by: UMMR
