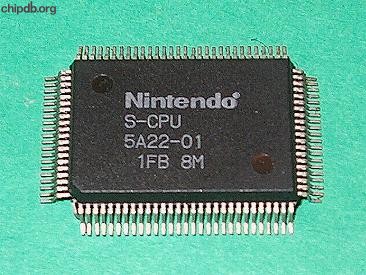

Nintendo S-CPU (SNES)


Nintendo S-CPU (SNES)

Nintendo S-CPU (SNES)
Notes:
Keywords:
Date: 24.04.2007 21:00
Photo contributed by: cpucollection.ca


Author: Comment:
Payphone Ed
Guest
WDC 65C816

This CPU is a custom unit based off of the 65C816 by Western Design Center
27.03.2009 21:08
Chris
Guest
Ricoh 5A22

Technically it's a Ricoh 5A22, which has more than just the WDC 65C816 (aka 65816) in it. Wikipedia has more info, but in short it has I/O support hardware, some extra interrupt generators, some DMA bits and bobs, and multiplication and division.
18.07.2009 15:35
